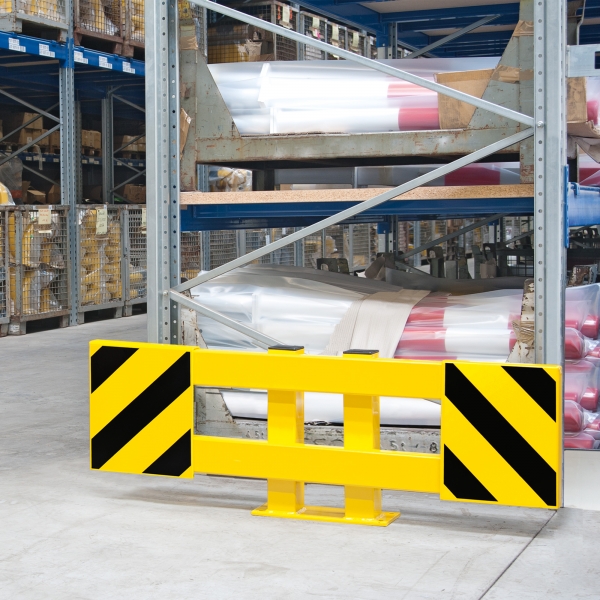

BLACK BULL Racking End Frame Protectors A

The BLACK BULL Racking End Frame Protector A provides protection for  vulnerable Racking End Frames from potentially hazardous damage from forklift trucks or other vehicles. These strong adjustable protectors are easily installed and adjusted to your requirements.

• Highly visible.
• Strong effective protection.
• Adjustable to width.
• Easily installed with minimum loss of space.

Applications:

Warehouses, distribution depots, manufacturing units etc.

Specifications:

Dimensions

• Posts: 465mmH x 80 x 80mm Square
• Rails: ‘C’ Profile – 100D x 40W x 3mm Gauge
• Anchor plates: 160D x 140W x 10mm Gauge
• All sets: 465mm High x 160mm Deep

• Set 1 Adjustable Width: 900mm to 1,300mm
• Set 2 Adjustable Width: 1,700mm to 2,100mm
• Set 3 Adjustable Width: 2,300mm to 2,700mm

Material:

• Posts, rails & end plates: Steel
• Securing blocks: Aluminium

Finishes:

• Indoor: Powder Coated Yellow with Black stripes on End plates
• Outdoor: Hot Dip Galvanised & Powder Coated with Black stripes on End plates

Each Set comprises the following:

Set 1 – 900 to 1,300mm

• 1 x Double post on base
• 2 x Rails 900mmL (‘C’ Profile)
• 2 x End Plates

       Set 2 – 1,700 to 2,100mm

• 2 x Posts
• 2 x Rails 1,800mL (‘C’ Profile)
• 2 x End Plates

       Set 3 – 2,300 to 2,700mm

• 3 x Posts
• 2 x Rails 2,300mmL (‘C’ Profile)
• 2 x End Plates
