Wheel Guide

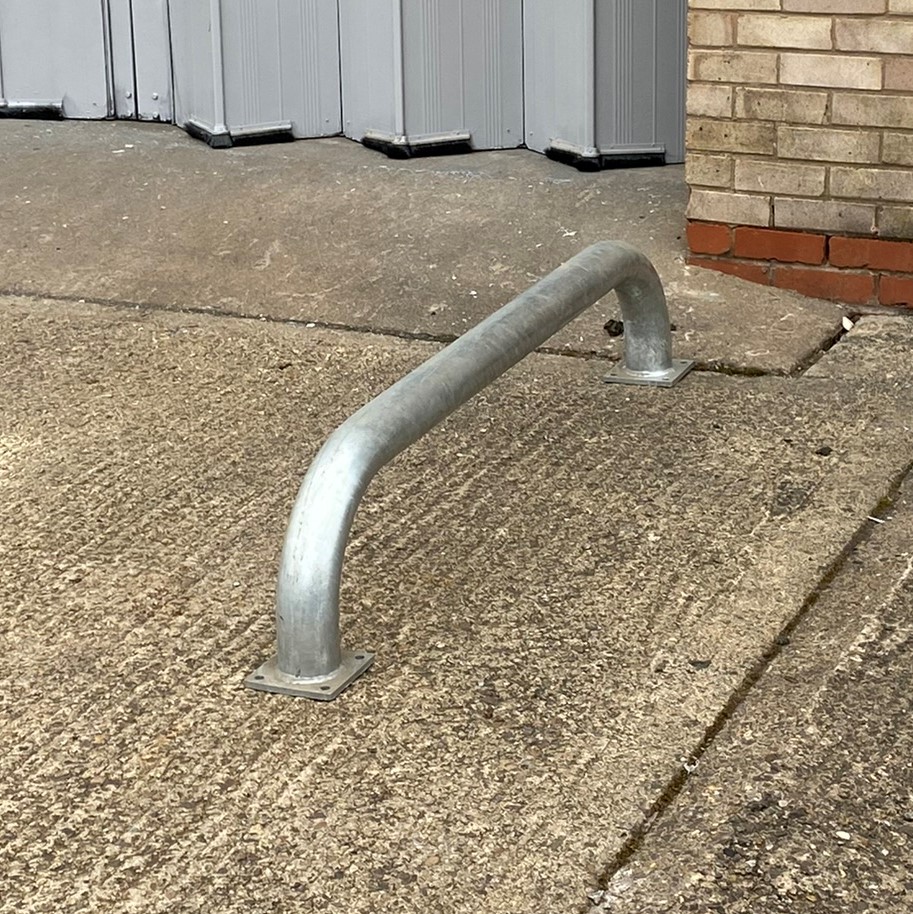

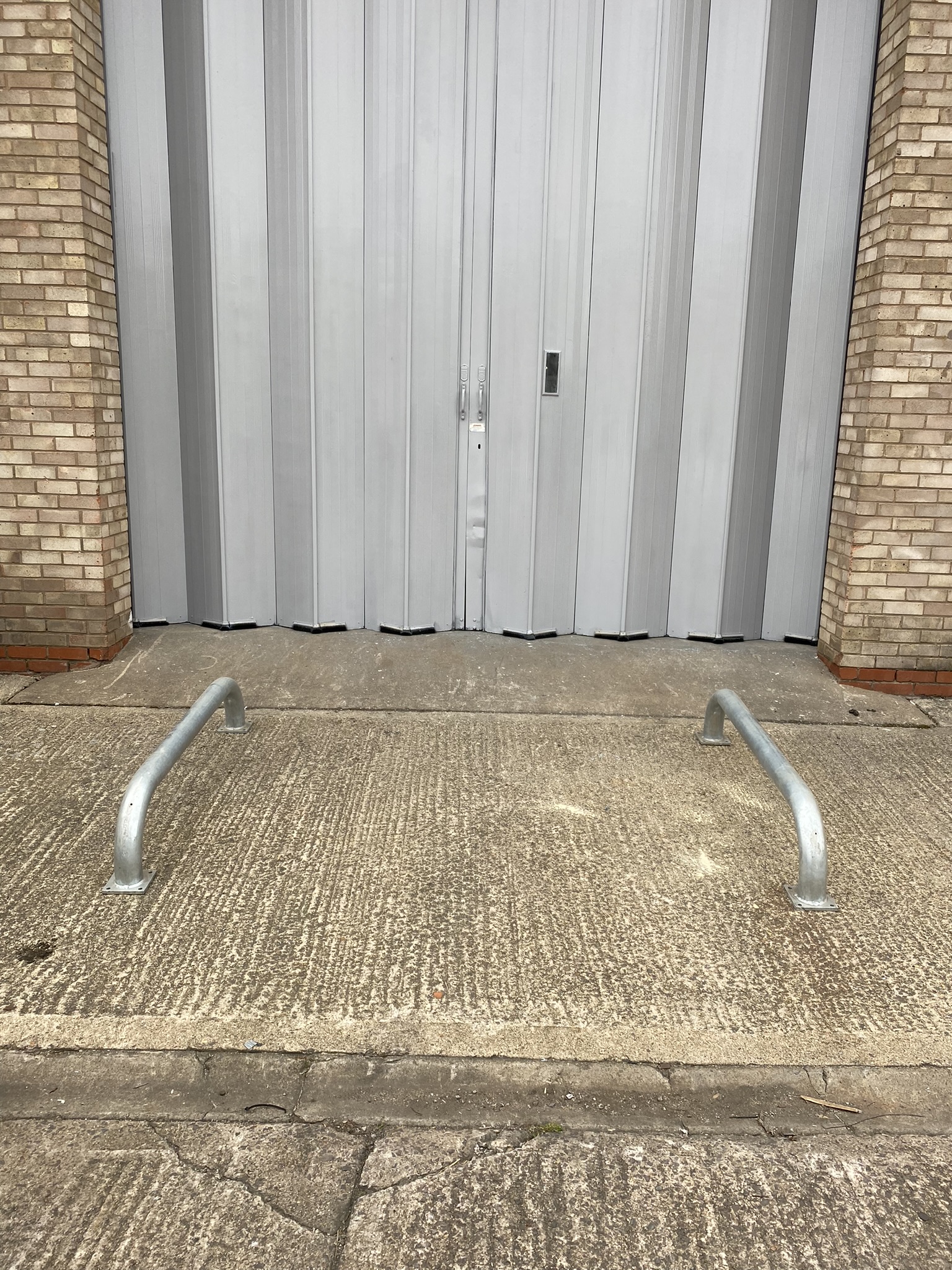

The AUTOPA Wheel Guide is ideal for providing guidance for reversing vehicles in loading bays. The Wheel Guide is available in 139mm and 168mm outside diameter mild steel galvanised tube which can be coated yellow to increase visibility. The Wheel Guide is available in two lengths, 1500mm or 2000mm.
All products in the range are galvanised mild steel, ensuring their longevity and are designed
To take the knocks and bumps that occur in the warehouse and factory environment.
The Wheel Guide is also suitable for us as a low level protection rail.

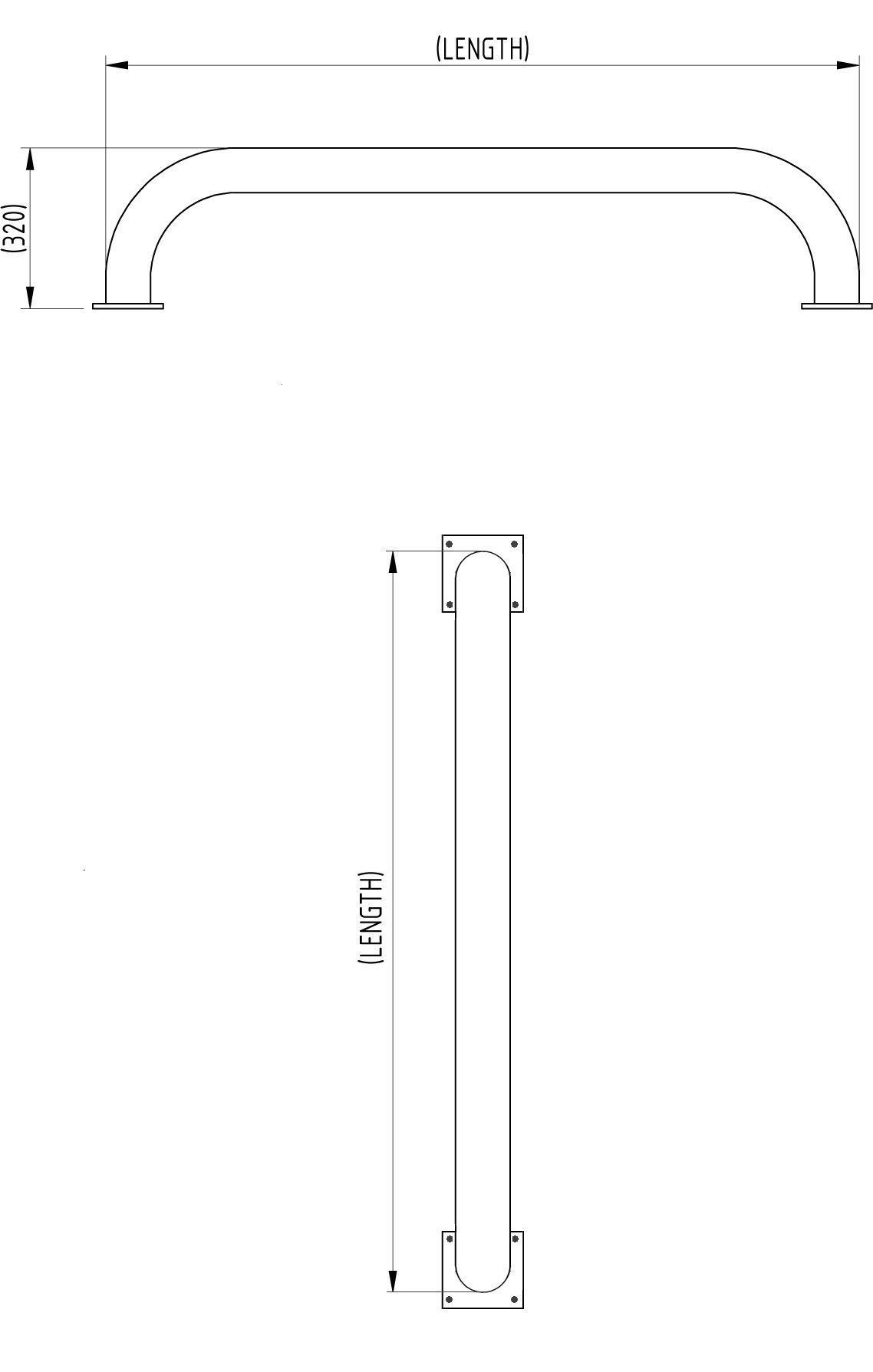

Product details

Available bolt down only

320mm height

Square flange plate – 250mm sq x 10mm

3mm wall thickness

8 x 12mm bolts required per wheel guide

Additional information

Weight N/A

139mm x 1500mm, 168mm x 1500mm, 139mm x 2000mm, 168mm x 2000


Galvanised, Galvanised & Yellow
